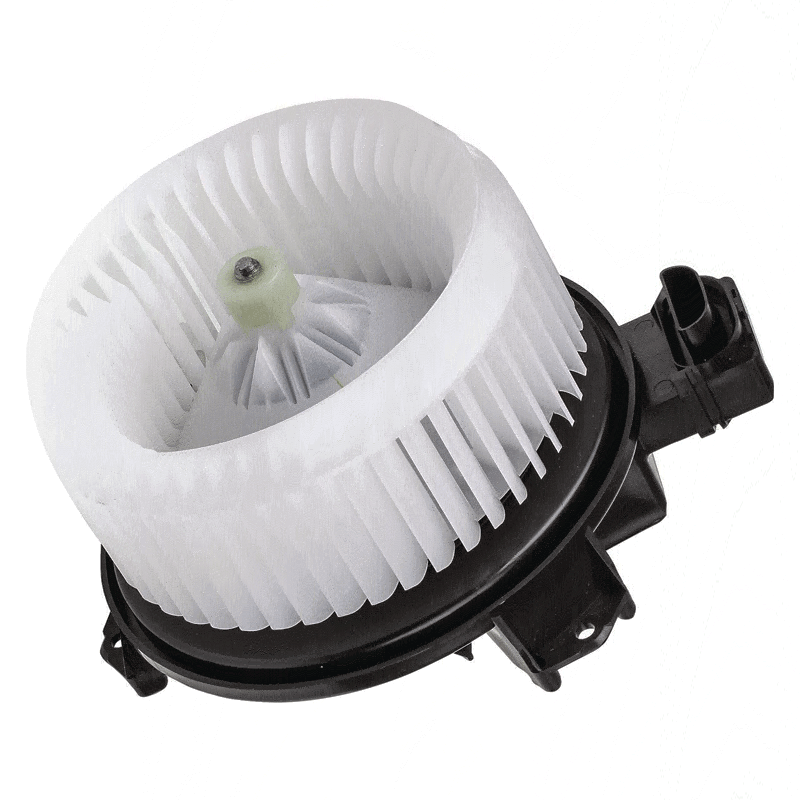

Genuine Blower Motor Fan Toyota Corolla Commuter HiAce Hilux 2005-2019

FREE SHIPPING WITHIN AUSTRALIA

Our Price: $215.00 inc.GST

Our Genuine and aftermarket blower motors are sourced from reputable manufacturers and wholesalers all over the world. Guaranteed to meet or exceed OEM specifications. Please compare images to your original sample to confirm suitability prior to purchase. Alternatively you can contact our friendly customer support team for assistance.

Part Number CCA-31152

Out of stock

SKU: EM1210 EMX1210 Category: Tag:

Product Description

Brand Denso
Description Blower Fan Assembly
Warranty One Year
Body Diameter 170mm
Body Length 135mm
Rotation Clockwise
Shaft Diameter 8mm
Termination 2 Terminals
Voltage 12v
Fan Blade Diameter 155mm
Shaft Drive Type Round

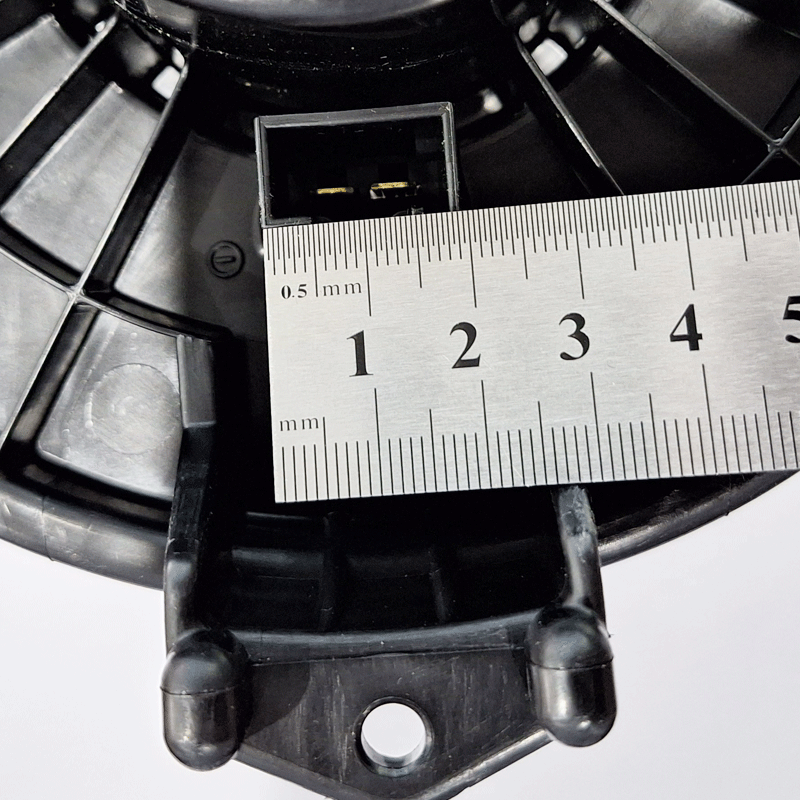

Special Note* Small Electrical Housing 16.5mm Width. Confirm Against Original Unit.
Suits Toyota Hilux GGN15R 4.0L GGN25R 4.0L KUN26R 3.0L TGN16R 2.7L 2005-2018

This Is A Genuine Denso Blower Motor Fan As Used By Toyota Dealerships At A Fraction Of The Price. Small Electrical Housing 16.5mm Width.

Compare Images Against Original Unit Or Search With OEM Part Number/s To Confirm Correct Fitment And Suitability Or Contact Us For Customer Assistance.

Additional Information

Weight 1 kg

This product is suited for:

Year Make Model
Year Make Model
2005 - 2018 Toyota Hilux
2014 - 2019 Toyota Corolla

TOYOTA COROLLA ZRE172,ZRE182 VVTi 1.8L 2ZR-FBE,2ZR-FE DOHC 16v Petrol 4cyl 103kW Sedan FWD [02/14 – 08/19]

TOYOTA COROLLA ZRE182R 1.8L 2ZR-FE DOHC 16v Petrol 4cyl 103kW Hatchback FWD [10/12 – 12/18]

TOYOTA HILUX GGN15 VII 4.0L 1GR-FE DOHC 24v Petrol V6 175kW Utility RWD [08/05 – 08/15]

TOYOTA HILUX GGN15R VII 4.0L 1GR-FE DOHC 24v Petrol V6 175kW Cab Chassis RWD

TOYOTA HILUX GGN25 VII 4.0L 1GR-FE DOHC 24v Petrol V6 175kW Utility AWD [08/05 – 08/15]

TOYOTA HILUX GGN25R VII 4.0L 1GR-FE DOHC 24v Petrol V6 175kW Cab Chassis AWD [02/05 – 06/15]

TOYOTA HILUX KUN16 VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility RWD [08/05 – 08/06]

TOYOTA HILUX KUN16 VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility RWD [08/06 – 05/15]

TOYOTA HILUX KUN16R VII D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis RWD [08/06 – 06/15]

TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Cab Chassis AWD [02/05 – 08/06]

TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 120kW Utility AWD [03/05 – 08/06]

TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Cab Chassis AWD [08/06 – 09/15]

TOYOTA HILUX KUN26 VII D-4D 3.0L 1KD-FTV DOHC 16v Turbo Diesel Direct Inj. 4cyl 126kW Utility AWD [08/06 – 09/15]

TOYOTA HILUX LN30, LN40 III D 2.2L L SOHC 8v Diesel 4cyl 49kW Utility RWD [01/79 – 07/83]

TOYOTA HILUX TGN16 VII 2.7L 2TR-FE DOHC 16v Petrol 4cyl 118kW Utility RWD [08/05 – 05/15]

TOYOTA HILUX TGN16R VII 2.7L 2TR-FE DOHC 16v Petrol 4cyl 118kW Cab Chassis RWD [02/05 – 06/15]

TOYOTA RAV4 ACA33 III 2.4L 2AZ-FE DOHC 16v Petrol 4cyl 125kW SUV AWD [11/05 – 12/12]

TOYOTA RAV4 ALA49 IV D 2.2L 2AD-FHV,2AD-FTV Euro 4 DOHC 16v Turbo Diesel Direct Inj. 4cyl 110kW SUV AWD [12/12 – 12/18]

TOYOTA RAV4 ASA44 IV 2.5L 2AR-FE DOHC 16v Petrol 4cyl 132kW SUV AWD [12/12 – 12/18]

TOYOTA RAV4 GSA33 III 3.5L 2GR-FE DOHC 24v Petrol V6 201kW SUV AWD [09/07 – 12/12]

  • Fitment
    We have Thousands of Part Numbers within our database for easy part/s identification. Simply enter your Original Part Number/s into the search bar and an instant match will often result. Images shown within our listings are for comparison purposes only. All genuine parts have the word “Genuine” in the title description. Any part branded as “Cool Car” in the product description is our own brand not OEM. Because there are often several options on some vehicles a Visual Comparison to your Original Part is Highly Recommended to avoid any possibility of purchasing the wrong part, It is the responsibility of the purchaser to determine if the listed part is correct for the intended purpose. If you are unsure, please contact our friendly support team prior to purchase.
  • Returns
    Returns are accepted for credit or refund within 30 days of purchase. Parts returned for credit will be credited the purchase price minus shipping fees. Parts returned for refund incur a 20% restocking fee. The purchaser is responsible for all return shipping costs. Fitted parts cannot be returned.

    Our address for all returns is Unit 3/6 Victory East Street Urangan QLD 4655.
    Download Return Form

  • Warranty

    All new a/c parts come with a one year manufacturers warranty from the original date of purchase.

    Incorrect compressor installation procedures can damage your new unit and void your warranty. Please familiarise yourself with the following steps prior to installation.

    (1) Remove the original compressor, drain, measure and examine the oil. If there is any moisture, sludge, discoloration ( black or grey oil ) or metal particles present, the entire a/c system must be thoroughly flushed with an approved flushing agent prior to the installation of your new unit.

    (2) The receiver/drier or desiccant bag must be replaced. Failing to do this will void your warranty.

    (3) If your vehicle is equipped with an orifice tube it should be inspected and replaced if necessary.

    (4) Parallel flow condensers cannot be thoroughly flushed, if there is any contamination it must be replaced. Tube and fin condensers can be flushed and do not need replacing.

    (5) All our compressors come pre-filled with oil, it is advised that the oil from both compressors is drained and measured. Refill the new a/c compressor with the same amount of oil that was drained from your original unit. Or refill the compressor with oil to your vehicle manufacturers specifications. Make sure you use the correct type of compressor oil. (This information will often be located on a decal under the bonnet or on the radiator support panel.)

    (6) Once fitted, rotate the compressor clutch by hand a minimum of 10 times. A concentration of oil in the compressor can cause damage during the first initial start-up.

    (7) Once the system is flushed and new parts installed, the system should be evacuated for a minimum of 45 minutes to evaporate any remaining solvent or moisture.

    (8) Recharge your a/c compressor with the correct amount of refrigerant.

    (9) Any compressor returned for warranty purposes will be assessed as the root cause for it failing prior to a warranty claim being accepted. The buyer is responsible for the return shipping costs back to us.

    In the event you need to make a warranty claim, please attach a copy of your receipt from your licensed workshop clearly showing a new receiver/ drier or desiccant bag had been fitted to your vehicle at the time of compressor installation. If installation was not carried out by a licensed workshop you are required to provide us a copy of a verifiable receipt clearly showing a new receiver/ drier or desiccant bag suited to your vehicle had been purchased.

    We accept no liability for any consequential loss, damage, or any other associated costs. By purchasing from us you agree to these terms.

    Warranty Claim Form

  • Backorders
    Any item showing as “Available on backorder” is not currently held in our inventory. Procurement lead times can vary between one business day up to 12 weeks. We advise you contact us prior to making a purchase on products showing as “Available on backorder “ so we can give an accurate estimate on lead times.
